anish fluid bed technology delivers advanced processing solutions for granulation, drying, coating, powder layering and pelletization across pharmaceutical, nutraceutical, and allied industries. Our systems are designed for uniform particle processing, improved product quality, and enhanced efficiency, meeting global regulatory standards. With decades of expertise, we provide customizable fluid bed solutions tailored to diverse formulation needs.

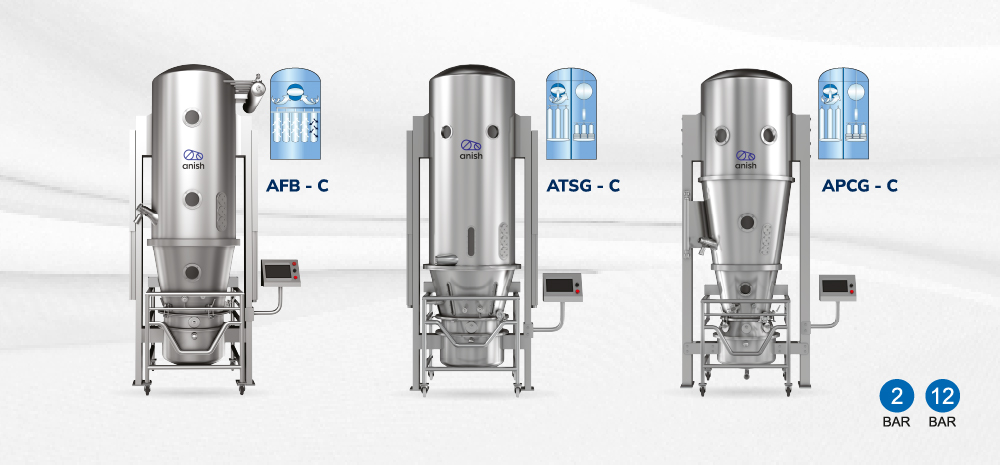

| APCG - C | AFB - C | ATSG - C | AFBD | |
| Drying | ✓ | ✓ | ✓ | ✓ |
| Top Spray | ✓ | ✓ | ✓ | |
| Bottom Spray | ✓ | ✓ | ||
| Tangential Spray | ✓ |

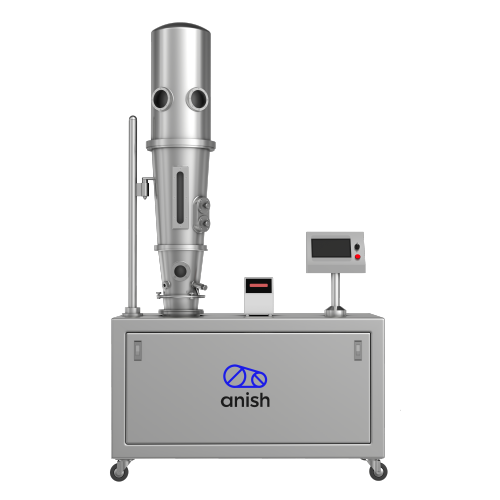

Fluid Bed for Lab (APCG - 175 C)
Our lab‑scale fluid bed systems are ideal for drying, granulation, and coating of powders and pellets. They ensure precise process control, uniform results, and easy scalability from laboratory trials to full production.
| Model | Dryer, Top Spray & Tangential Spray | Bottom Spray |
|---|---|---|
| APCG - 175 C | 3L to 10L | 1L to 6L |

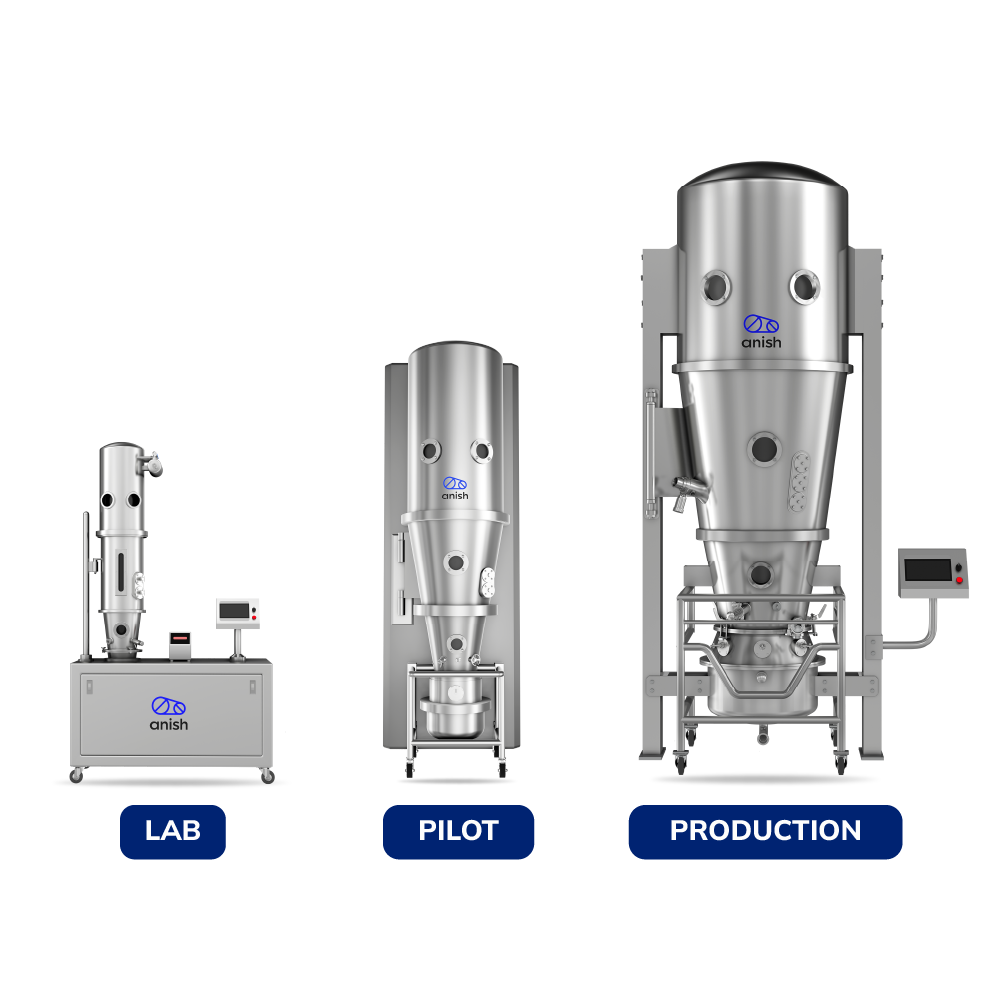

APCG – C
The APCG‑C, our versatile fluid bed system, offers maximum flexibility for all fluid bed processes from simple drying and granulation to pelletizing and advanced particle coating. It ensures homogeneously shaped products with consistent quality, supporting top‑spray, bottom‑spray, and tangential‑spray operations. Designed for batch sizes from 500 gm to 1,500 kg, with other capacities available on request. Available in 2‑BAR and 12‑BAR pressure shock‑resistant constructions.
| Model | APCG 175C | APCG 225C | APCG 300C | APCG 450C | APCG 600C | APCG 800C | APCG 1200C | APCG 1250C | APCG 1450C |
|---|---|---|---|---|---|---|---|---|---|
| Bottom Spray | 1.5L to 6L | 2L to 21L | 3L to 40L | 8L to 105L | 14L to 167L | 35L to 410L | 60L to 780L | 140L to 855L | 550L to 1750L |
| Top Spray | 3L to 10L | 8L to 32L | 10L to 47L | 25L to 123L | 32L to 266L | 123L to 600L | 295L to 1260L | 350L to 1300L | 750L to 2050L |

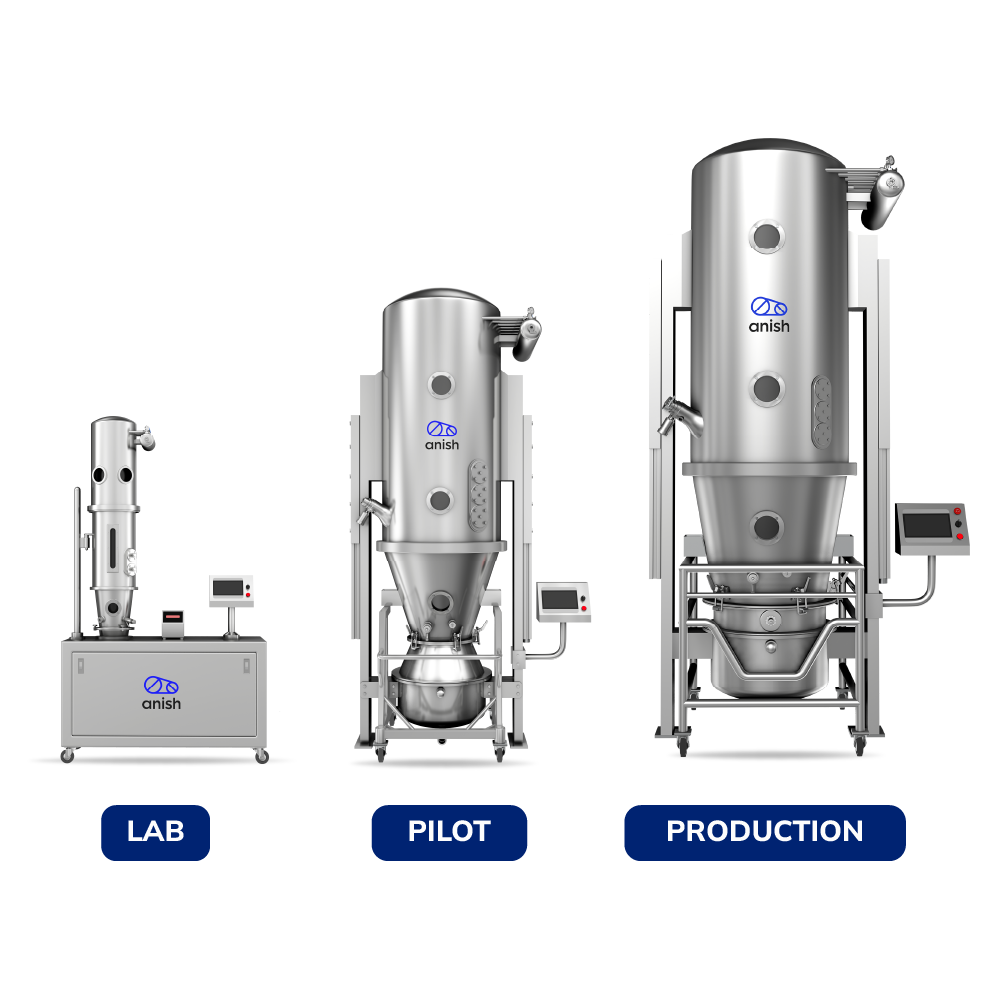

AFB - C
The AFB C, our proven fluid bed system, is designed for drying and for top spray and bottom spray granulation of solids, delivering uniform and consistent product quality. It is suitable for batch sizes from 500 gm to 1,500 kg, with customized capacities available on request. The system features an advanced filter purging mechanism for enhanced operational reliability and is available in both 2 BAR and 12 BAR pressure shock resistant constructions.
| Model | AFB 2C | AFB 10C | AFB 30C | AFB 60C | AFB 120C | AFB 300C |
|---|---|---|---|---|---|---|
| Bottom Spray | 1.5L to 6L | 18L to 54L | 18L to 150L | 51L to 200L | 51L to 450L | 150L to 900L |
| Top Spray | 3L to 10L | 22L to 73L | 54L to 220L | 110L to 432L | 148L to 684L | 274L to 1160L |
ATSG - C
The ATSG‑C, our proven fluid bed system, is engineered for top‑spray granulation of solids, delivering uniform and consistent product quality. It is ideal for drying, easy to operate, and designed for batch sizes ranging from 500 gm to 1,500 kg, with customized capacities available on request. The system is available in 2‑BAR and 12‑BAR pressure‑shock‑resistant constructions.
| Model | ATSG 10C | ATSG 25C | ATSG 125C | ATSG 250C | ATSG 500C | ATSG 800C | ATSG 1000C | ATSG 1300C | ATSG 1600C |
|---|---|---|---|---|---|---|---|---|---|
| Bottom Spray |
1.5L to 6L | 21L to 65L | 21L to 102L | 35L to 237L | 80L to 445L | 150L to 670L | 150L to 745L | 225L to 868L | 250L to 915L |
| Top Spray |
3L to 10L | 21L to 72L | 21L to 116L | 35L to 286L | 75L to 500L | 150L to 800L | 240L to 1000L | 240L to 1300L | 300L to 1600L |

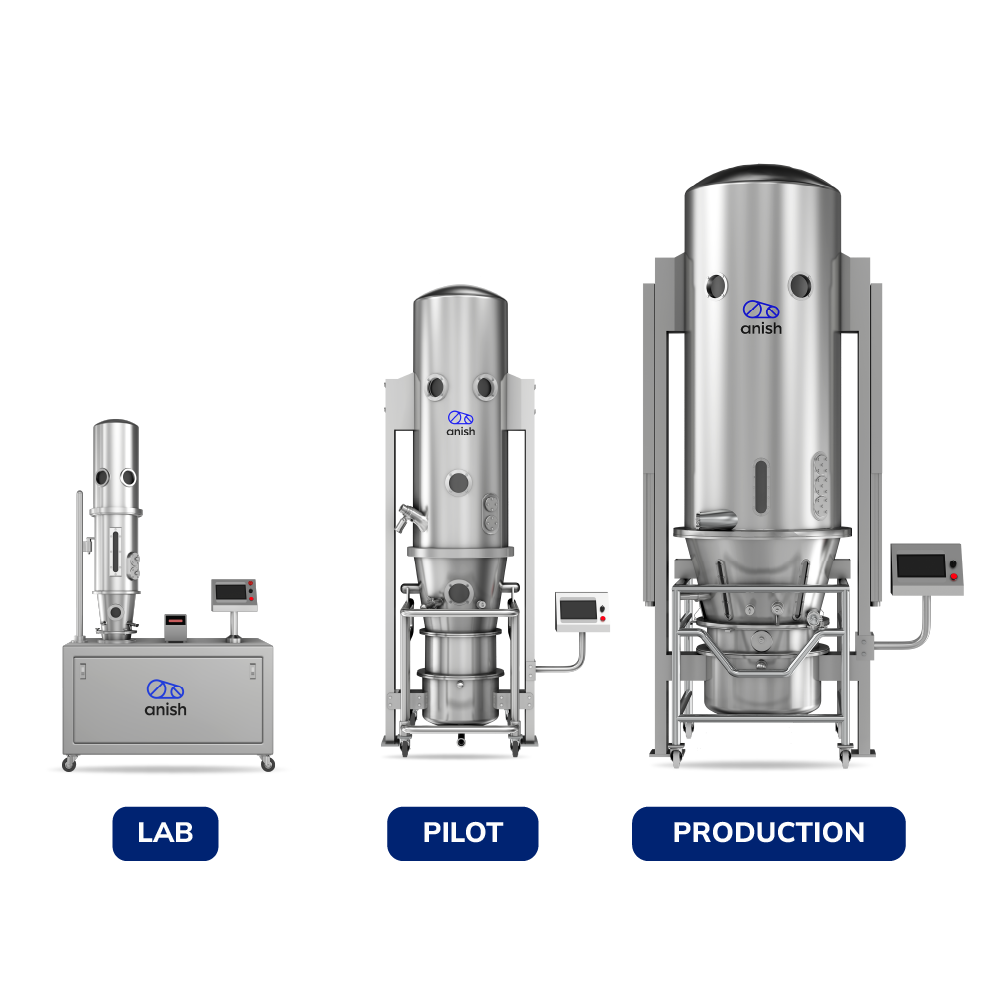

AFBD
Our proven fluid bed system engineered for efficient drying of solids, delivering uniform and consistent product quality. It is easy to operate and ideal for batch sizes from 500g to 1,500kg with customised capacities available on request. The system is offered in 2 BAR and 12 BAR pressure shock-resistant constructions.
| Model | AFBD 10 | AFBD 25 | AFBD 125 | AFBD 250 | AFBD 500 | AFBD 800 | AFBD 1000 | AFBD 1300 | AFBD 1600 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 3L to 10L | 21L to 72L | 21L to 116L | 35L to 286L | 75L to 500L | 150L to 800L | 240L to 1000L | 240L to 1300L | 300L to 1600 |
FAQs
+
Can customers conduct product trials on the Fluid Bed System before purchase?
Yes. Customers can conduct trials on anish fluid beds – lab, pilot & production scale equipment (upto 1.5 Ton batch capacity) at anish application lab, Nashik, India.
+
Is the Fluid Bed System suitable for USFDA and EU regulated products?
Yes. The system is designed as per cGMP guidelines and is widely used for regulated and export market product development and manufacturing.
+
What processes can be performed using the Fluid Bed System?
The Fluid Bed System can be used for drying, granulation and coating by changing configurations and process parameters on the same machine.
+
Can Anish process experts help optimize Fluid Bed process parameters?
Yes. Anish’s process experts assist in selecting the right configuration and optimizing parameters for granulation, drying, or coating.
+
Does Anish provide service support and spare parts for Fluid Bed Systems?
Yes. Anish offers prompt after-sales service, technical support, and quick availability of critical spare parts all over the world.
+
Are DQ, IQ, OQ, PQ documents available for the Fluid Bed System?
Yes. Complete documentation support including DQ, IQ, OQ & PQ are provided as per customer and regulatory needs.
+
What batch size range is supported in the Fluid Bed System?
Batch sizes are available from lab-scale to commercial-scale (1L to 2500L), and configurations can be customized based on product and process requirements.
+
Can the same Fluid Bed be used for multiple products?
Yes. The equipment supports multi-product usage with easy cleaning and quick changeover, minimizing cross-contamination risks.
+
Is the Fluid Bed System scalable from lab to commercial scale?
Yes. The design philosophy remains consistent across lab, pilot, and production models, enabling reliable scale-up and parameter transfer.
